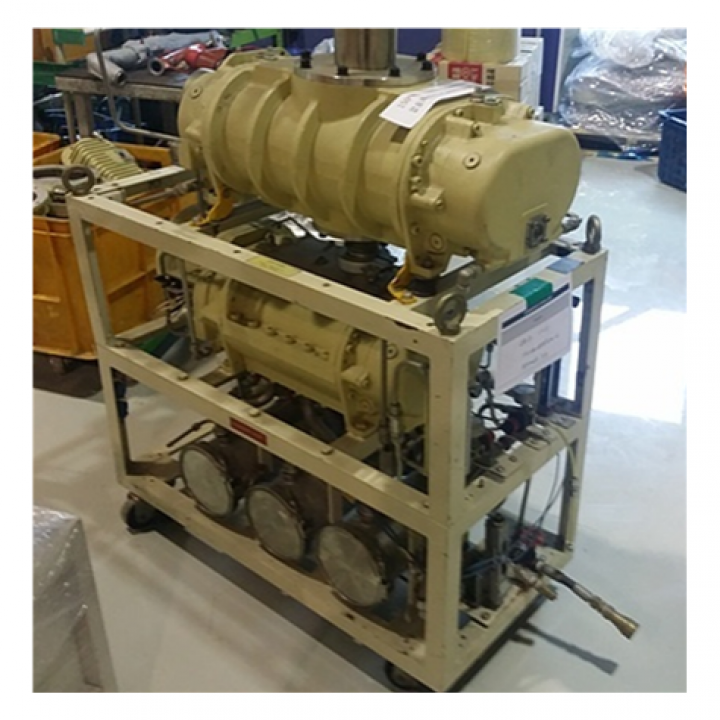

Ebara 150x40 UERP6M-6 rebuilt Dry vacuum pump
Ebara 150x40 UERP6M-6 rebuilt Dry vacuum pump
| Model | 150x40 UERP6M-6 |
|---|---|
| Manufacturer | Ebara |
| Unit Price | $9,500 |
| Type | Dry Pump |
| Number of Unit | 1 |
| Pumping Speed (60Hz) | 1,080 m³/h ( 635 cfm, 18000 lpm ) |
| Ultimate pressure ( 60Hz ) | 4.0 x 10¯³ mbar |
| Dimension | 1,098 x 450 x 1,212 (mm) |
| Electrical Supply ( Main breaker ) | 208 / 230V, 50 / 60 Hz, 3 Ph ( 45A ) |
| Rotational Speed | 3,460 rpm |
| Inlet Connection | ISO100 |
| Outlet Connection | NW40 |
| Utility ( Water / N2 flow ) | 5~8 lpm, 4 Kg/cm² / 5~8 lpm |
| Motor Power | 3.7 + 3.7 Kw |
| Oil capacity | 1.7 L |
| Weight | 470 Kg |
| Condition | Refurbished |
